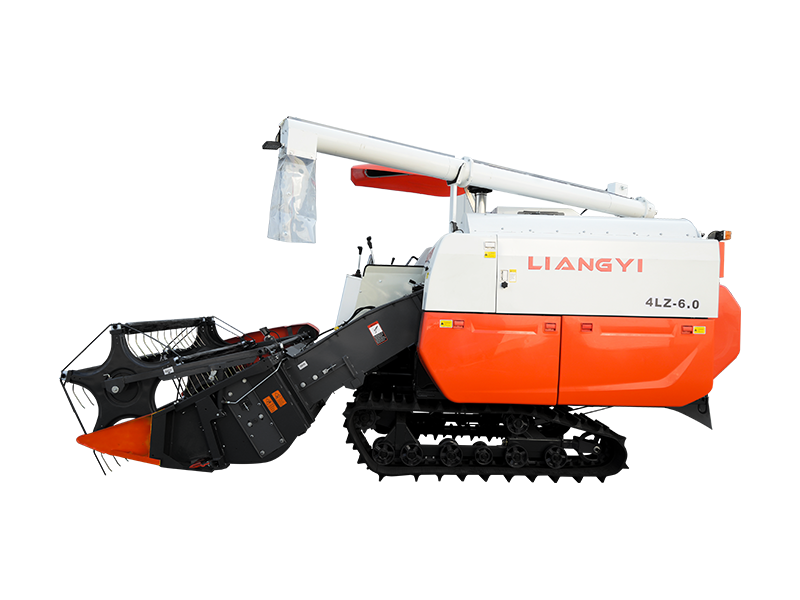

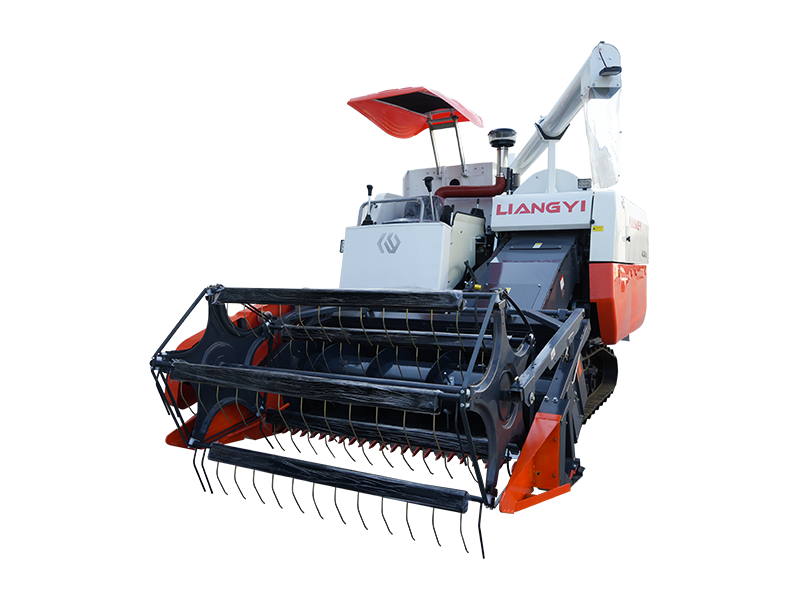

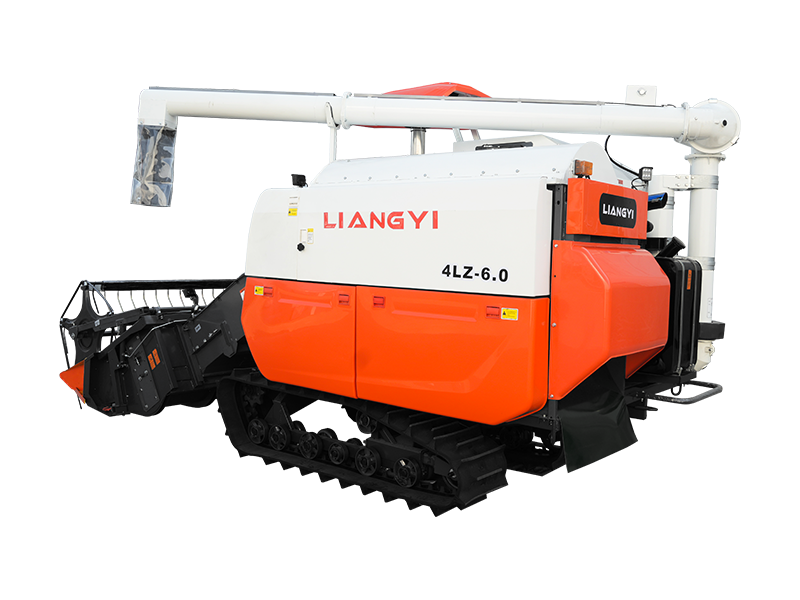

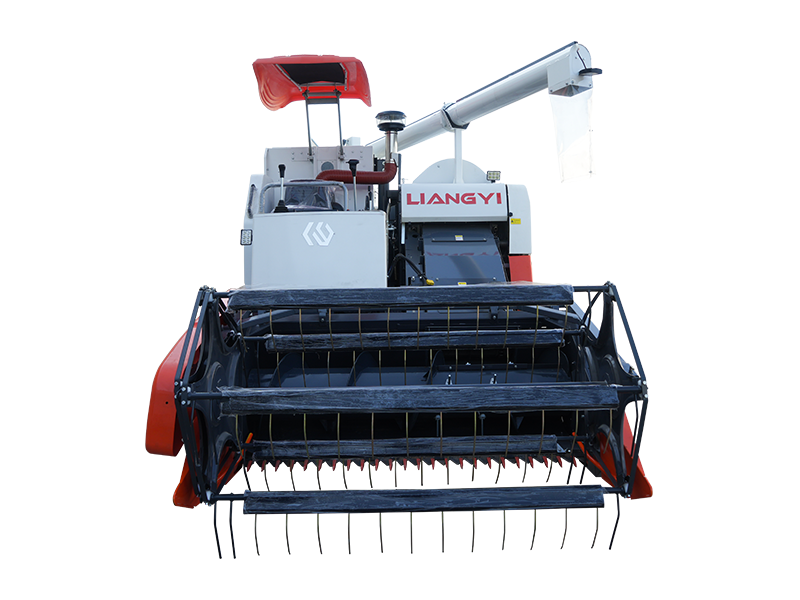

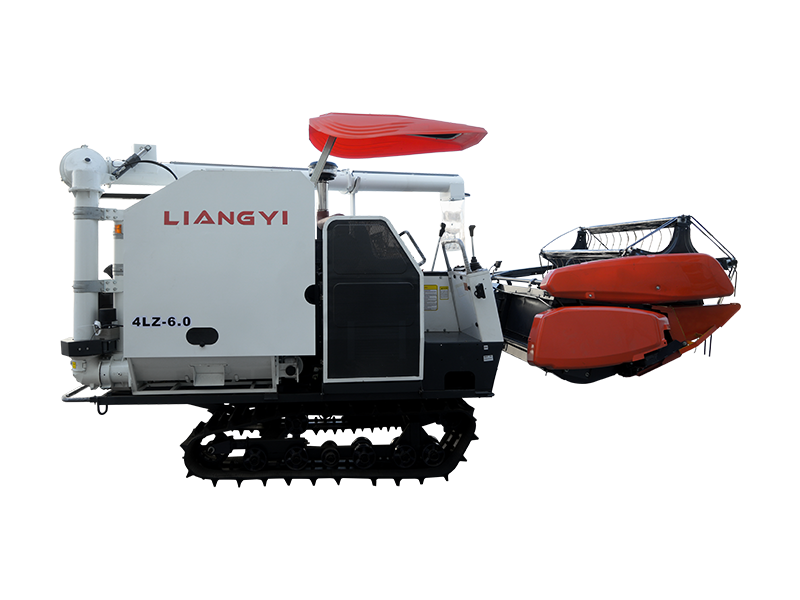

4LZ-6.0 Rice and wheat Combine Harvester

1.Adopts 102HP engine with high power and low fuel consumption.

2.Cutting Width 2.2m for different areas of fields.

3.Liangyi special hydraulic gearbox 80 with best quality.

4.Use 45cc HST for working more smoothly.

5.Bigger threshing cylinder ensures grain lose less and much cleaner.

6.Stronger rubber track 500*90*56 with high teeth for working more efficient in deep mud field.

7.Sunshade

Model			4LZ-6.0
Dimension (LengthWidthHeight) mm			515023502900
Weight (kg)			3260
Working efficiency (hm2/h)			0.6-0.7
Cutter bar length (mm)			2000 (or 2200)
Feeding capacity (t/h)			18
Engine	Type		Water cool, four stroke,turbocharging diesel engine
	Model		4G33
	Output/rpm (HP/rpm)		102/2600
	Fuel tank capacity (L)		110
Traveling system (riding_wheel system)	Crawler specification (width*length of ground connection)		5009056
	Ground pressure (kpa)		19.6
	Ground length(mm)		1710
	Gauge(mm)		1250
	Ground clearance		320 mm
	Type of gearbox		Mechanical + hydraulic CV, 80 gearbox +HST45cc
	Variable speed series		Advance stepless and backward stepless (3 gears each)
	Theoretical Work Speed (m/s)		Lowspeed :0~1.11, Standard :0~1.47, Walking :0~2.14
Working parts	Threshing cylinder	Type	Axial flow, spike tooth（vertical thresh）
		Diameter& length	620mm*1800mm
	Reel	Speed (r/min)	560
	Flat area Concave Area (m2)		1.456
	Cleaning		Oscillating •3Way Air Stream Cleaning System
Grain unloading method			Automatic discharging
Grain tank capacity			1400L
Total loss (%)			Rice≤3.0,Wheat≤1.2
Breakage rate (%)			Rice≤1.5,Wheat≤1
Impurity rate (%)			Rice≤2.0,Wheat≤2.0
Packing:			3 sets in one 40 feet HQ container

About LIANGYI

China LIANGYI Group, headquartered in Zhejiang Province, China. Its subsidiaries include: Taizhou LIANGYI Agricultural Machinery Co., Ltd., Huzhou LIANGYI Construction Co., Ltd., Yangzhou LIANGYI Power Co., Ltd., and Huzhou LIANGYI Import and Export Co., Ltd. Mainly engaged in the manufacture and sale of agricultural and forestry machinery and construction machinery.

The company is famous China 4LZ-6.0 Rice and wheat Combine Harvester suppliers and OEM/ODM 4LZ-6.0 Rice and wheat Combine Harvester company. There are more than 500 dealers at home and abroad, and the OEM 4LZ-6.0 Rice and wheat Combine Harvester sales network covers Asia, Africa, Central and South America and other places. Among them, the rice harvester and rice transplanter series are well-known at home and abroad for their superior quality.
