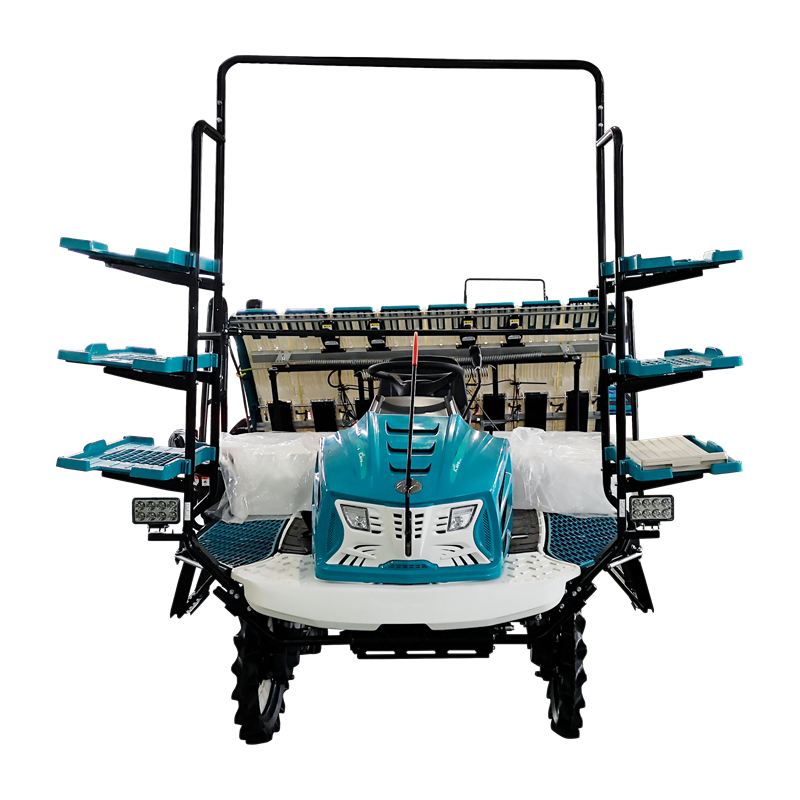

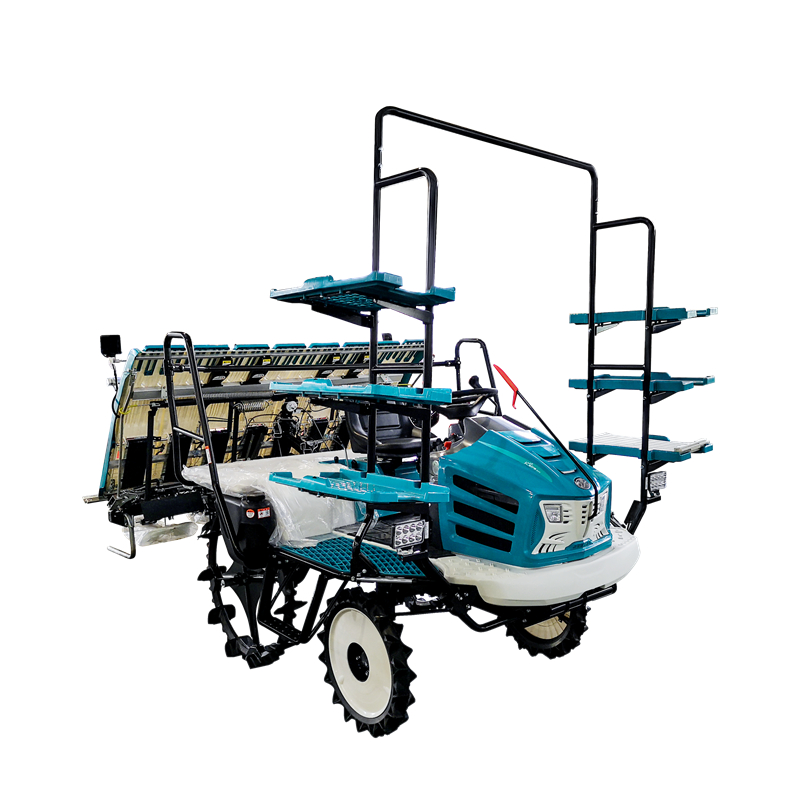

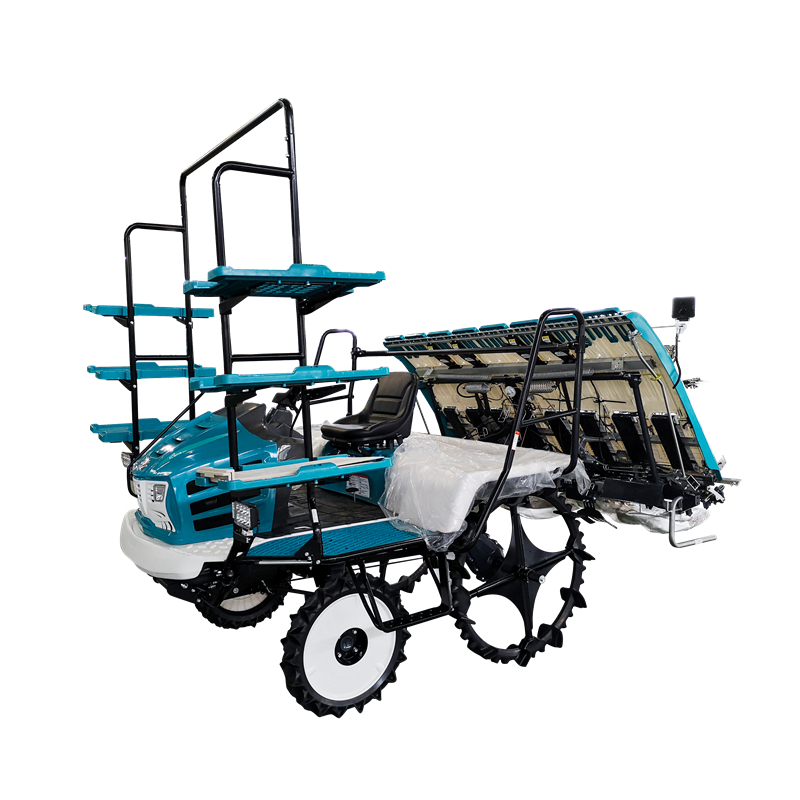

LIANGYI 2ZG-8D Riding Type Rice Transplanter

1.Use Yanmar or Kubota engine which can ensure that transplanter work in ddifferent deep mud field.
2. Adopt independent susupension system with less vibration and let it more comfortable.
3. Excellent 4-wheels driving which ensures good balance of transplanter body.

Model 2ZG-8D
Type Riding
Driving model 4-wheels driving
Dimensions Length(mm) 3090
Width(mm) 2200
Height(mm) 2580
Weight(kg) 860
Engine Brand Yanmar or Kubota
Model 3TNM72
Type tical water-cooled 3-cylinder diesel engine
Displacement(L) 0.904
Power(kW) 18.5 or 14.2
Rotate speed(r/min) 3600
Fuel diesel
Fuel tank(L) 34
Start method Electric
Battery Voltage(V) 12
capacity(Ah) 45
Fuel consuption (kg/hm ) 2.2~5.6
Walking part wheels type front Run-flat tire
rear Rubber tires with thick wheels
Diameter*width front φ650×95
(mm) rear φ950×50
space between wheels front 1200
(mm) rear 1200
Steering Method Hydrulic
Stepless method HST
Working speed(km/h) 0~5.94
Ground clearance(mm) 500

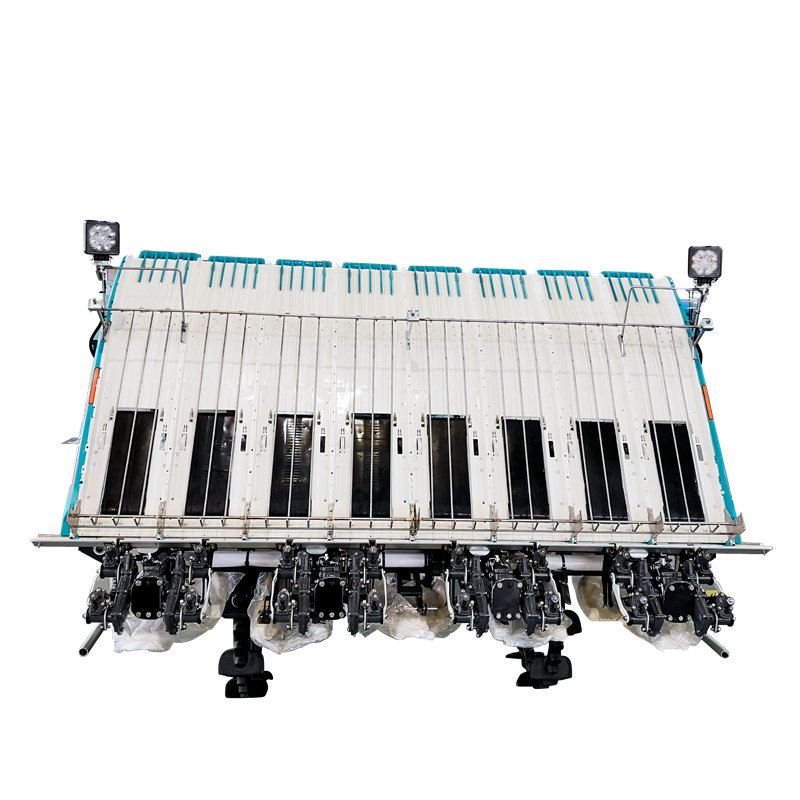

Planting part Planting type rotary planting
working rows 8
Row space(mm) 250/300
Planting space(mm) 100、120、140、160、180、210、240
Planting depth(mm) 10~55
Adjustable seedlings horizental 20、18、16、14
vertical depth(mm) 8~18
Balance type mechanical
Seedling condition Type blocks
Height of seedling(mm) 80~250
Leaf age 2.0~4.5
Seedling tray shelf 6
Warning device Charge,oil pressure,backward,high temperature, seedling out
Working effeciency(hm²/h) 0.3~1.2
Packing 4 sets in one 40 feet HQ container
